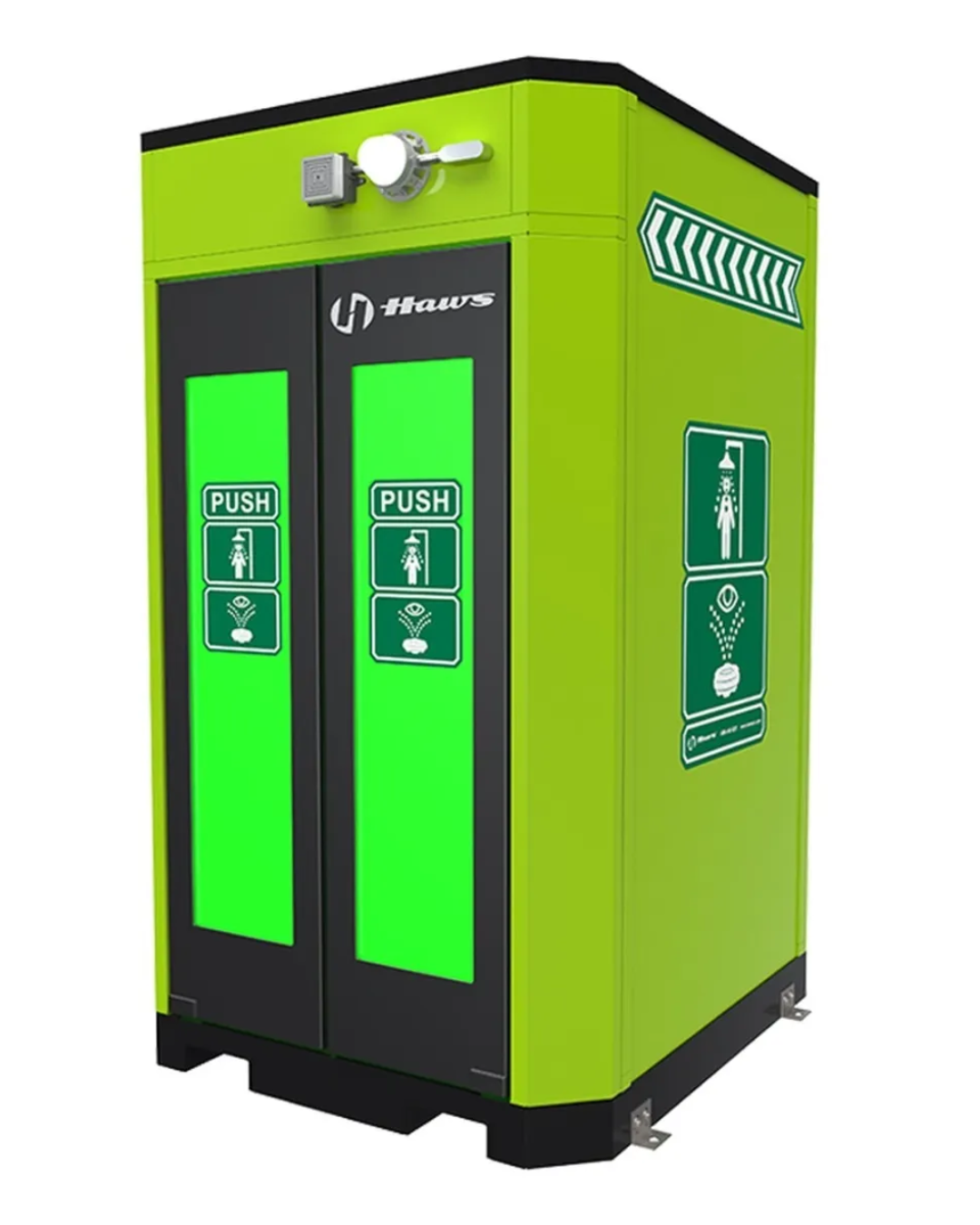

HAWS ePOD™ Indoor/Outdoor Heated Shower and Eye/Face Wash Booth - 8730

Model 8730 ePOD™ enclosed shower and eye/face wash unit provides a sheltered, safe environment for the use of the safety shower and/or eyewash station. While it does not provide its own tempering system, the 8730 can be coupled with a separate tempering unit or an ANSI compliant water source to provide a refuge from the elements to maintain a comfortable space for victim response. It shall include a completely enclosed 5’ x 5’ (1.52 x 1.52m) all-weather, aluminum structure covered with safety green chemical and UV resistant polyester based powder coating which provides an optional operating temperature range of -50° to 120° (-45° to 48.9° C). It shall include spring-loaded, self-closing shower doors, is trimmed with large directional arrows, universal shower/eyewash sign, fiberglass floor grate, and 3" IPS inside caulk drain. There is a 20 gpm (75.7 L) AXION® hydrodynamic showerhead, an eye/face wash that features the medically acclaimed AXION® MSR eye/face wash head assembly. Chrome-plated brass stay-open shower and eye/face ball valves equipped with stainless steel ball and stem, and can be protected by scald and freeze bleed valves. The internal booth temperature can be maintained by an optional space heater. The available alarm system is proximity switch activated, and provides local audible and visible alarms. Combination shower and eyewash is certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment. For the electrical certification, the system is certified by accredited Certification Body.

• Standardized platform provides shorter lead times and customizable configuration options
• High visibility safety green for quick visual placement during an emergency
• AXION technology with inverted eye/face wash and hydrodynamic shower flows
• Ready-to-incorporate design variations including hot water supply, electrical type, temperature control, stainless steel piping, and more

Certifications

• Buy American Act
• CSA Certified
