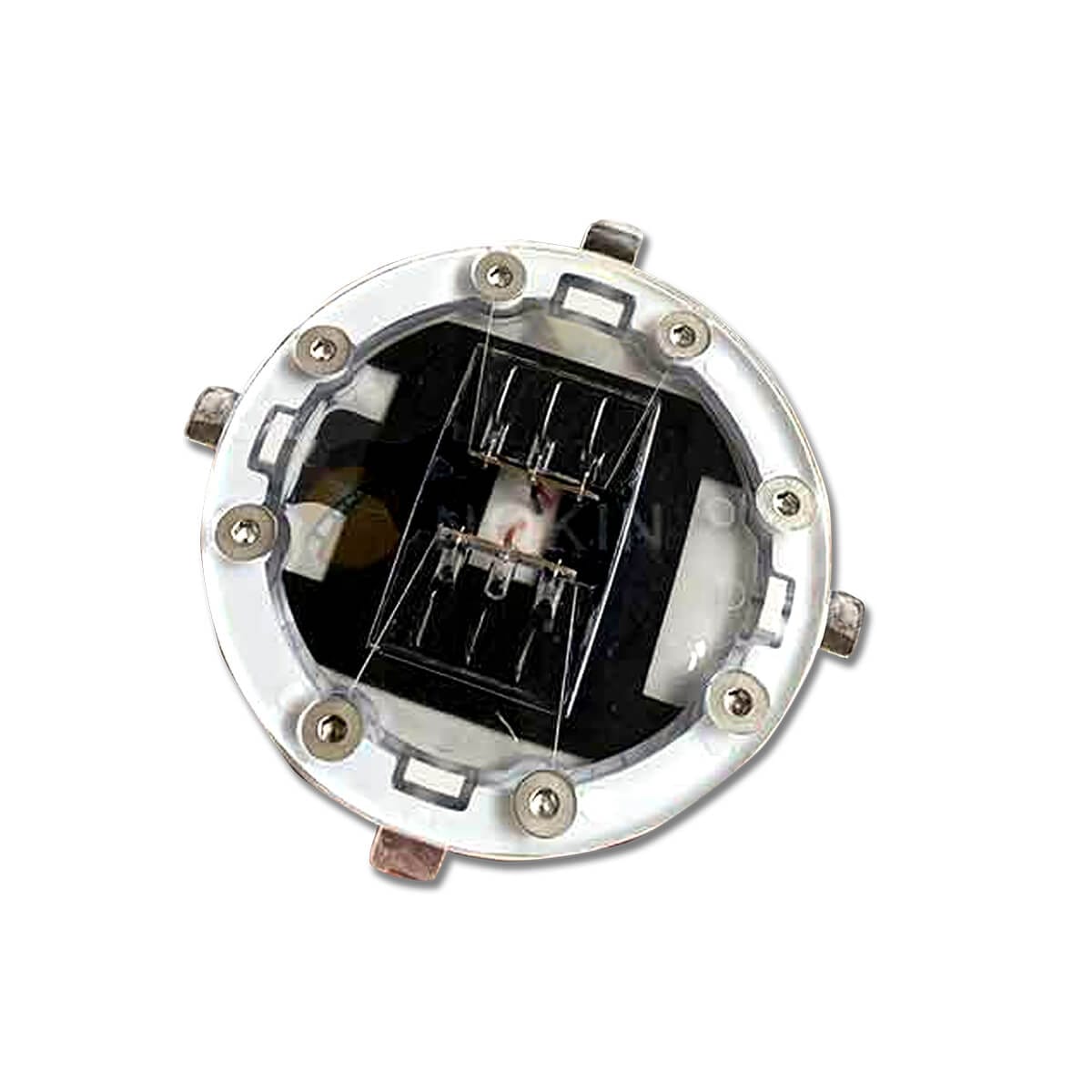

Intelligent System Wired Road Stud
Intelligent System Wired Road Stud is an active luminousroad stud used on the sidewalk, also known as zebra crossing road stud, smart zebra crossing, generally installed atone end of the...
Description
Intelligent System Wired Road Stud is an active luminous
road stud used on the sidewalk, also known as zebra crossing road stud, smart zebra crossing, generally installed at
one end of the zebra crossing, and emits a warning light
through LED towards drivers to slow down or stop Wait, and
remind pedestrians to pay attention to vehicles at the
intersection to improve the safety of pedestrians crossing
the road. The visible distance of the illuminated zebra crossings of Impex99 road stud exceeds 200M at night. It
consists of bulletproof PC shell, one-time die-casting cast
aluminum shell, LED, and controller. The luminous zebra
crossing can correspond to a variety of interfaces, and can
be connected to high-definition thermal imaging cameras,
geomagnetic sensors, traffic light signal systems, etc. The
above devices send control signals to the road stud controller, and the road studs flash. The
flashing frequency can be customized according to customers. Adjustment is required, generally from 2HZ to 4HZ. After
installation, the top of the product only protrudes from the
ground by 6mm, preventing the damages.
Additional information
| Model |
TS 805 |
|---|---|
| Compression |
40 TONS |
| Product Power Consumption |
< 1.5 W |
| Display Mode |
Connect to traffic signals, high-definition thermal imaging detectors, geomagneticsensors, etc. to achieve synchronous work. |
| Light Emitting Diodes |
6 LEDs in the middle bidirectional far away, 16 LEDs on both sides vertically upwards, the brightness is greater than 5000mcd. |
| Display Color |
Green, Red, Yellow |
| Visible Distance at Night |
> 200 Meters |
| Service Life |
> 3 years ~ +70C |
| Dimensions |
126 x 56 mm |
| Material |
Cast Aluminum Shell + PC bulletproof material liner + Epoxy Resin Fillinng |
| Protection Class |
Product IP 68 Extension Cable IP 65 |
| Warranty |
1 Year |
Data Sheet
Specifications
Please refer to product description for specifications.
