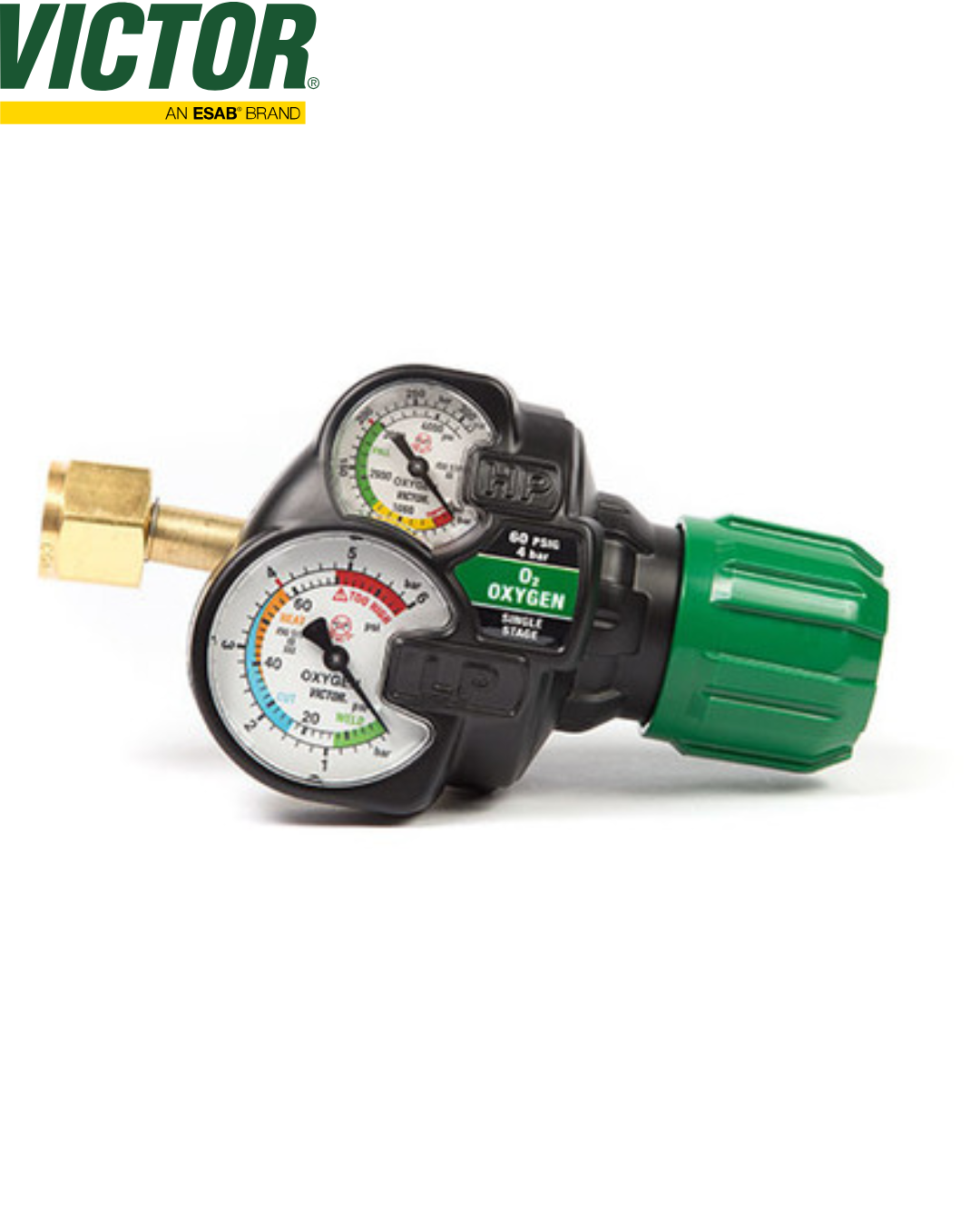

EDGE Series 2.0 Regulators
Victor EDGE™ Series 2.0 patented regulators are second generation, heavy-duty, high capacity single stage cylinder regulators that reset the standard for industrial regulators.New and improved gauge designs incorporate larger faced...
Description
Victor EDGE™ Series 2.0 patented regulators are second generation, heavy-duty, high capacity single stage cylinder regulators that reset the standard for industrial regulators.
New and improved gauge designs incorporate larger faced delivery gauge (low pressure) with high contrasted colored face for easy setting. Enhanced color-coded knob designs provide more comfortable operations.
Air, Oxygen, Inert Gas, Methane, Hydrogen, Carbon Dioxide, Acetylene and LP Gas (see ordering information)
| Model | Delivery Range | CGA Inlet | CGA Outlet |
|---|---|---|---|
| ESS42-60-540 Oxygen | 2 – 60 psig | 540 | 9/16 in. - 18 RH |
| ESS42-150-540 Oxygen | 5 – 150 psig | 540 | 9/16 in. - 18 RH |
| ESS42-150-346 Air | 5 – 150 psig | 346 | CGA 033 (5/8 in. - 18 F LH) |
| ESS42-150-590 Air | 5 – 150 psig | 590 | CGA 033 (5/8 in. - 18 F LH) |
| ESS42-150-580 Inert Gas | 5 – 150 psig | 580 | CGA 032 (5/8 in. - 15 F RH) |
| ESS42-150-320 Carbon Dioxide | 5 – 150 psig | 320 | CGA 032 (5/8 in. - 15 F RH) |
| ESS42-150-350 Methane/Hydrogen | 5 – 150 psig | 350 | 200 PSI vented relief valve (1/4 in. - 18 F) |
| ESS42-15-510 Acetylene | 2 – 15 psig | 510 | 9/16 in. - 18 LH |
| ESS42-15-300 Acetylene | 2 – 15 psig | 300 | 9/16 in. - 18 LH |
| ESS42-15-993 Acetylene | 2 – 15 psig | 993 | 9/16 in. - 18 LH |
| ESS42-15-410 Acetylene | 2 – 15 psig | 410 | 9/16 in. - 18 LH |
| ESS42-60-510LP LP Gas | 2 – 60 psig | 510 | 9/16 in. - 18 LH |
| ESS42-150-510LP LP Gas | 2 – 150 psig | 510 | 9/16 in. - 18 LH |
Dimensions
| Length | Width | Height |
|---|---|---|
| 101.6 mm ( 4 in. ) | 152.4 mm ( 6 in. ) | 101.6 mm ( 4 in. ) |
Weight
| Weight |
|---|
| 1.81 kg ( 4 lbs ) |
Specifications
Please refer to product description for specifications.
